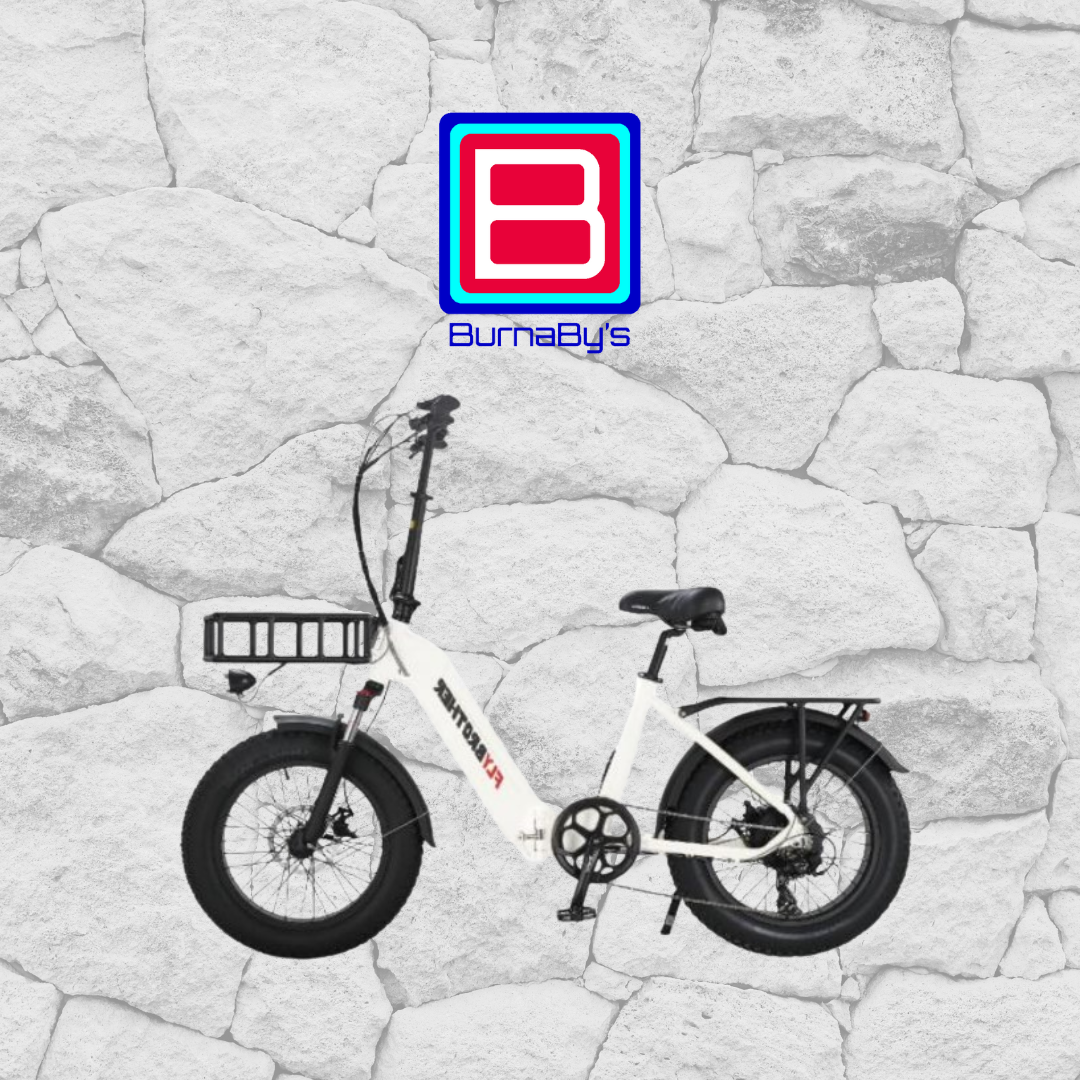

Electric Bicycle - FAT Bike FTG101

The Flybrother FTG101 is a folding, step-through e-bike with a 750W motor, a 48V 20Ah lithium battery, and a top speed of 40 km/h. It is designed for both urban commuting and light utility use, featuring an aluminium alloy frame and disc brakes.

Data Sheet

Key Features

• Motor: Powerful 750W motor provides strong performance for hills and commuting.
• Battery: High-capacity 48V 20Ah lithium battery, offering an electric-only range of 80–100 km and a pedal-assist range of 120–130 km.
• Speed: A maximum speed of up to 40 km/h.
• Frame: Lightweight, foldable aluminium alloy frame for easy storage and transport.
• Brakes: Reliable front and rear disc brakes provide dependable stopping power in various conditions.
• Gears: Equipped with a SHIMANO 7-speed gear system for smooth control across different terrains.
• Display: Features a YL-80 C LCD display to track speed, battery life, distance, and riding mode

Additional Features:

• Front and rear LED lights for safety.
• An aluminium basket and a load box for carrying gear.
• A cell phone charger for convenience.
• Charging time of 6–8 hours.

Product features:

• Model FTG101
• Size 1640*580*1050mm
• Anti-theft systerm - alarm anti-theft lock/steel wire lock/with mobile phone
  stand
• Frame 20 "aluminum alloy/ foldable
• Front fork 20 "aluminum shoulder iron leg shock absorbing front fork
• Back hanger Aluminum alloy
• Front basket aluminum alloy
• Front and rear plastic mug guard
• Handlebars aluminum alloy straight handlebars
• Riser two-stage aluminum alloy folding, height adjustable
• Bowl set - Kenli toothless
• Brake handle - aluminum alloy power off brake handle, 2 core waterproof
  head
• Brake front and rear mechanical disc brakes
• Motor 48V 750W brush-less rear drive motor
• Speed systerm SHIMANO 7-speed
• Battery 48V20ah power lithium battery
• Max speed 40 KM/H
• Electric mileage 80-100 KM
• Assisted mileage 120-130 km (pedaling)
• Rim 20 "aluminum alloy, fat rim
• Front hub aluminum alloy
• Tires 20 "*4.0 rubber pneumatic tires
• Seat tube Aluminum alloy with chuck
• Tooth plate 48T aluminum alloy crank
• Central shaft bearing with integrated seal
• Pedal - plastic folding
• Chain KMC anti-rust variable speed chain
• Variable speed system SHIMANO rear 7 speed
• Controller 48V lithium sine wave controller
• Instrument left LCD multi-function instrument
• Turn handle Half handle with waterproof head
• Power sensor left integrated 12 magnetic speed sensor
• Switch horn headlight two-function switch
• Headlight LED low light horn
• Taillight LED running lights brake lights
• Parking rack aluminum alloy rear bracket, adjustable length
• Charger 54.6V3A DC2.1 head
• Charging time 6 hours
• Riding mode pure electric riding assists cycling
• MAX Loading 150 kg
• Net Weight 31.8 kg
• Gross weight 38.2 kg
• Rubber tire weight 4.2 kg


Positive Feedback: Riders highlight its power, ability to handle various terrains, good battery life, and efficient service from local suppliers.

Versatile Use: Suitable for city commuting, exploring trails, and even hauling gear.
