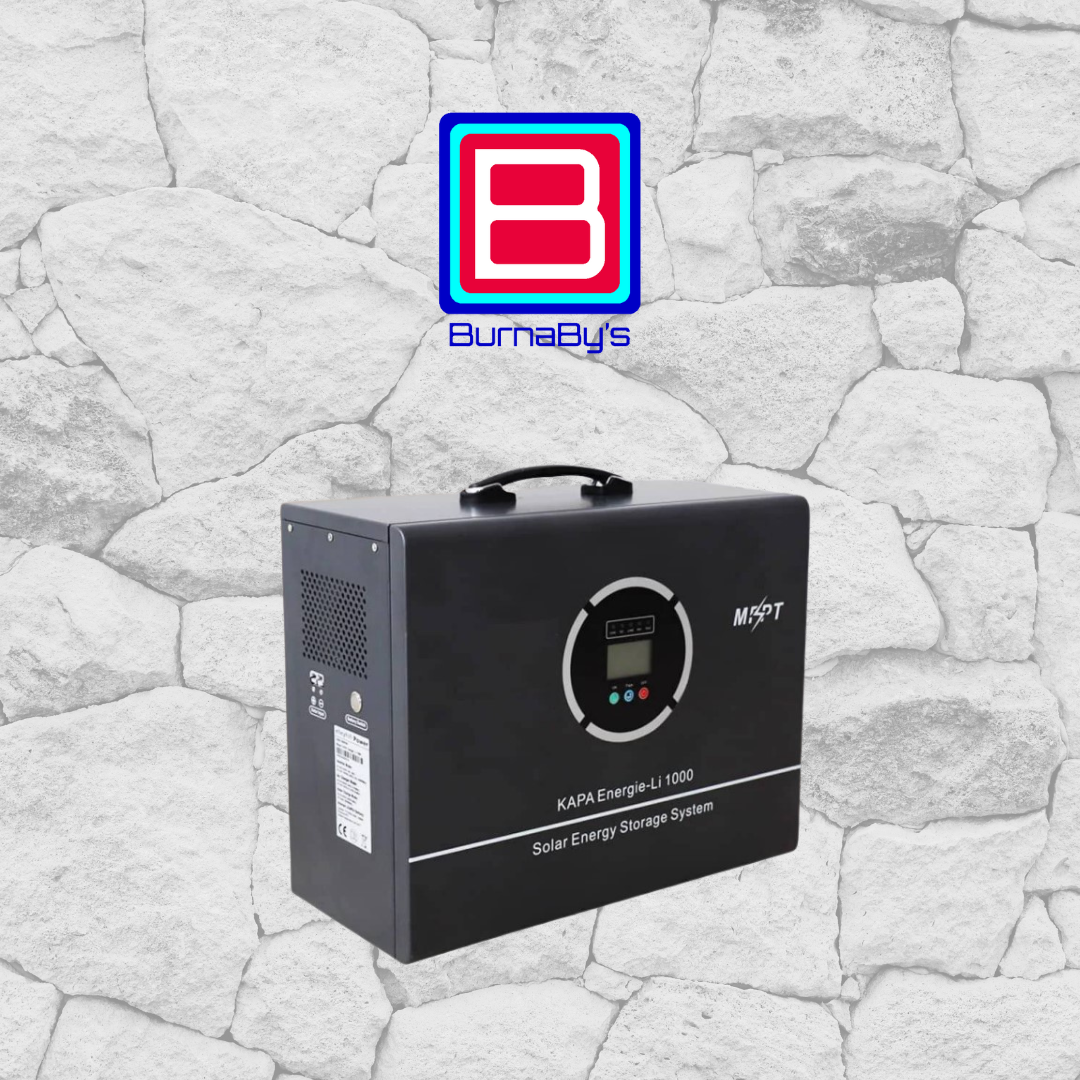

Q Li1000 / 1000W Mobile Power Unit

Product features:

• EMPS Energy Storage System is an all‑in‑one solution, which integrates an inverter and a battery into one unit
• Max 1500 cycles lithium battery and has a 5 years service life
• The mains activates the lithium battery, and the solar activates the lithium battery function
• AVR mains input and battery charging, UPS uninterrupted power supply
• Convenient and practical 5VDC‑USB output port and 12VDC output port
• MPPT Controller greatly improving the charging efficiency more than 15%‑20%
• Over charge protection and discharge protection for a longer battery life
• Safe and reliable with intelligent exhaust fan control
• Overall automatic protection and alarms including AC output over load protection, short circuit protection. Etc

Battery:

• Rated Voltage - 25.9V
• Specification - 1295Wh (25.9V - 50Ah)

Pure Sinewave Inverter:

• Rated
Power -
1000W
• Input Voltage Range - 145VAC - 275VAC
• Input Frequency 46Hz - 64Hz
• Output Voltage - 230VAC
• Output Frequency 50Hz - 60Hz

Solar Input:

• Max PV Power - 820W
• Charging Voltage Range - 34 - 100VDC
• Rated Charge Current - 30A MPPT
• Floating Charge Voltage - 29.0VDC
• DC Output
• Low Voltage Recovery Voltage - 27.3VDC
• Low Voltage Protection Voltage - 21.7VDC
• 5VDC USB Output - 2Pcs Max 2A
• 12VDC Output Ports - 2Pcs Max 2A

Physical:

• Protection - IP 21
• Display - LCD + LED
• Battery Activation - Mains or Solar Input
• Size
- 430
x
230
x
330
mm

• Weight
- 23KGS


Power Station Wattage / Appliance
Wattage
=
Hours
of continuous
use
Appliance
usage
calculations
based
on
single
appliance
use
on
power station. Combining
appliances
willreduce
power station
usage
time.
